Built In Pipes

Learning Objectives

  • Know what pipes are in Angular and how to use them.

  • Know what built-in pipes Angular provides and have an idea of their function and how to use them.

Pipes provided by Angular

Angular provides the following set of built-in pipes:

CurrencyPipe

This pipe is used for formatting currencies. Its first argument is an abbreviation of the currency type (e.g. "EUR", "USD", and so on), like so:

{{ 1234.56 | currency:'GBP'  }}

The above prints out GBP1,234.56, if instead of the abbreviation of GBP we want the currency symbol to be printed out we pass as a second parameter the boolean true, like so:

{{ 1234.56 | currency:"GBP":true  }}

The above prints out £1,234.56.

currency pipe.png
<div class="card card-block">
  <h4 class="card-title">Currency</h4>
  <div class="card-text">

    <p ngNonBindable>{{ 1234.56 | currency:'GBP'  }}</p>
    <p>{{ 1234.56 | currency:"GBP"  }}</p>

    <p ngNonBindable>{{ 1234.56 | currency:'GBP':'true'  }}</p>
    <p>{{ 1234.56 | currency:"GBP":true  }}</p>
  </div>
</div>

DatePipe

This pipe is used for the transformation of dates. The first argument is a format string, like so:

date pipe.png
<div class="card card-block">
  <h4 class="card-title">Date</h4>
  <div class="card-text">
    <p ngNonBindable>{{ dateVal | date: 'shortTime'  }}</p> (1)
    <p>{{ dateVal | date: 'shortTime'  }}</p>

    <p ngNonBindable>{{ dateVal | date:'fullDate'  }}</p>
    <p>{{ dateVal | date: 'fullDate'  }}</p>

    <p ngNonBindable>{{ dateVal | date: 'shortTime'  }}</p>
    <p>{{ dateVal | date: 'shortTime'  }}</p>

    <p ngNonBindable>{{ dateVal | date: 'd/M/y'  }}</p>
    <p>{{ dateVal | date: 'd/M/y'  }}</p>
  </div>
</div>

  1. dateVal is an instance of new Date().

DecimalPipe

This pipe is used for transformation of decimal numbers.

The first argument is a format string of the form "{minIntegerDigits}. {minFractionDigits}-{maxFractionDigits}", like so:

decimal pipe.png
<div class="card card-block">
  <div class="card-text">
    <h4 class="card-title">DecimalPipe</h4>
    <p ngNonBindable>{{ 3.14159265 | number: '3.1-2'  }}</p>
    <p>{{ 3.14159265 | number: '3.1-2'  }}</p>

    <p ngNonBindable>{{ 3.14159265 | number: '1.4-4'  }}</p>
    <p>{{ 3.14159265 | number: '1.4-4'  }}</p>
  </div>
</div>

JsonPipe

This transforms a Javascript object into a JSON string, like so:

json pipe.png
<div class="card card-block">
  <h4 class="card-title">JsonPipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ jsonVal  }}</p> (1)
    <p>{{ jsonVal  }}</p>

    <p ngNonBindable>{{ jsonVal | json  }}</p>
    <p>{{ jsonVal | json  }}</p>
  </div>
</div>

  1. jsonVal is an object declared as { moo: 'foo', goo: { too: 'new' }}.

LowerCasePipe

This transforms a string to lowercase, like so:

lowercase pipe.png
<div class="card card-block">
  <h4 class="card-title">LowerCasePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 'asim' | uppercase  }}</p>
    <p>{{ 'asim' | uppercase  }}</p>
  </div>
</div>

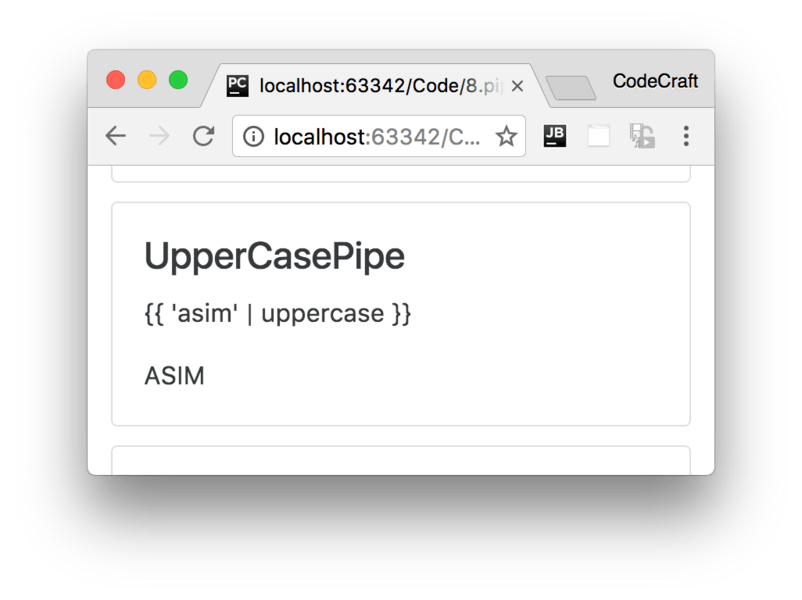

UpperCasePipe

This transforms a string to uppercase, like so:

uppercase pipe.png
<div class="card card-block">
  <h4 class="card-title">UpperCasePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 'asim' | uppercase  }}</p>
    <p>{{ 'asim' | uppercase  }}</p>
  </div>
</div>

PercentPipe

Formats a number as a percent, like so:

percent pipe.png
<div class="card card-block">
  <h4 class="card-title">PercentPipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 0.123456 | percent  }}</p>
    <p>{{ 0.123456 | percent  }}</p>

    <p ngNonBindable>{{ 0.123456 | percent: '2.1-2'  }}</p> (1)
    <p>{{ 0.123456 | percent: '2.1-2'  }}</p>

    <p ngNonBindable>{{ 42 | percent: '10.4-4'  }}</p>
    <p>{{ 0.123456 | percent : "10.4-4"  }}</p>
  </div>
</div>

  1. Percent can be passed a format string similar to the format passed to the DecimalPipe.

SlicePipe

This returns a slice of an array. The first argument is the start index of the slice and the second argument is the end index.

If either indexes are not provides it assumes the start or the end of the array and we can use negative indexes to indicate an offset from the end, like so:

slice pipe.png
<div class="card card-block">
  <h4 class="card-title">SlicePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:1:3  }}</p> (1)
    <p>{{ [1,2,3,4,5,6] | slice:1:3  }}</p>

    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:2  }}</p> (2)
    <p>{{ [1,2,3,4,5,6] | slice:2  }}</p>

    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:2:-1  }}</p> (3)
    <p>{{ [1,2,3,4,5,6] | slice:2:-1  }}</p>

    <pre ngNonBindable>
&lt;ul&gt;
  &lt;li *ngFor=&quot;let v of [1,2,3,4,5,6] | slice:2:-1&quot;&gt;
    {{ v }}
  &lt;/li&gt;
&lt;/ul&gt;
    </pre>

    <ul>
      <li *ngFor="let v of [1,2,3,4,5,6] | slice:2:-1"> (4)
        {{ v }}
      </li>
    </ul>
  </div>
</div>

  1. slice:1:3 means return the items from the 1st to the 3rd index inclusive (indexes start at 0).

  2. slice:2 means return the items from the 2nd index to the end of the array.

  3. slice:2:-1 means return the items from the 2nd index to one from the end of the array.

  4. We can use slice inside for loops to only loop over a subset of the array items.

AsyncPipe

This pipe accepts an observable or a promise and lets us render the ouput of an obserable or promise without having to call then or subscribe.

We are going to take a much deeper look at this pipe at the end of this section.

Summary

Angular comes with a very useful set of pre-built pipes to handle most of the common transformations we require in templates.

One of the more complex pipes to understand in Angular is the async pipe that’s what we’ll cover next.

Listing

http://plnkr.co/edit/UG4SwlJ0DQEGjkhbbQz9?p=preview

script.ts
import {NgModule, Component, Pipe} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';
import {Observable} from 'rxjs/Rx';

@Component({
  selector: 'pipe-builtins',
  template: `<div class="card card-block">
  <h4 class="card-title">Currency</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 1234.56 | currency:'GBP' }}</p>
    <p>{{ 1234.56 | currency:"GBP" }}</p>

    <p ngNonBindable>{{ 1234.56 | currency:'GBP':'true' }}</p>
    <p>{{ 1234.56 | currency:"GBP":true }}</p>
  </div>
</div>

<div class="card card-block">
  <h4 class="card-title">Date</h4>
  <div class="card-text">
    <p ngNonBindable>{{ dateVal | date: 'shortTime' }}</p>
    <p>{{ dateVal | date: 'shortTime' }}</p>

    <p ngNonBindable>{{ dateVal | date:'fullDate' }}</p>
    <p>{{ dateVal | date: 'fullDate' }}</p>

    <p ngNonBindable>{{ dateVal | date: 'shortTime' }}</p>
    <p>{{ dateVal | date: 'shortTime' }}</p>

    <p ngNonBindable>{{ dateVal | date: 'd/M/y' }}</p>
    <p>{{ dateVal | date: 'd/M/y' }}</p>
  </div>
</div>

<div class="card card-block">
  <div class="card-text">
    <h4 class="card-title">DecimalPipe</h4>
    <p ngNonBindable>{{ 3.14159265 | number: '3.1-2' }}</p>
    <p>{{ 3.14159265 | number: '3.1-2' }}</p>

    <p ngNonBindable>{{ 3.14159265 | number: '1.4-4' }}</p>
    <p>{{ 3.14159265 | number: '1.4-4' }}</p>
  </div>
</div>

<div class="card card-block">
  <h4 class="card-title">JsonPipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ jsonVal }}</p>
    <p>{{ jsonVal }}</p>

    <p ngNonBindable>{{ jsonVal | json }}</p>
    <p>{{ jsonVal | json }}</p>
  </div>
</div>


<div class="card card-block">
  <h4 class="card-title">LowerCasePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 'asim' | uppercase }}</p>
    <p>{{ 'asim' | uppercase }}</p>
  </div>
</div>

<div class="card card-block">
  <h4 class="card-title">UpperCasePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 'asim' | uppercase }}</p>
    <p>{{ 'asim' | uppercase }}</p>
  </div>
</div>

<div class="card card-block">
  <h4 class="card-title">PercentPipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ 0.123456 | percent }}</p>
    <p>{{ 0.123456 | percent }}</p>

    <p ngNonBindable>{{ 0.123456 | percent: '2.1-2' }}</p>
    <p>{{ 0.123456 | percent: '2.1-2' }}</p>

    <p ngNonBindable>{{ 42 | percent: '10.4-4' }}</p>
    <p>{{ 0.123456 | percent : "10.4-4" }}</p>
  </div>
</div>

<div class="card card-block">
  <h4 class="card-title">SlicePipe</h4>
  <div class="card-text">
    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:1:3 }}</p>
    <p>{{ [1,2,3,4,5,6] | slice:1:3 }}</p>

    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:2 }}</p>
    <p>{{ [1,2,3,4,5,6] | slice:2 }}</p>

    <p ngNonBindable>{{ [1,2,3,4,5,6] | slice:2:-1 }}</p>
    <p>{{ [1,2,3,4,5,6] | slice:2:-1 }}</p>

    <pre ngNonBindable>
&lt;ul&gt;
  &lt;li *ngFor=&quot;let v of [1,2,3,4,5,6] | slice:2:-1&quot;&gt;
    {{v}}
  &lt;/li&gt;
&lt;/ul&gt;
    </pre>

    <ul>
      <li *ngFor="let v of [1,2,3,4,5,6] | slice:2:-1">
        {{v}}
      </li>
    </ul>
  </div>
</div>

 `
})
class PipeBuiltinsComponent {
  private dateVal: Date = new Date();
  private jsonVal: Object = {moo: 'foo', goo: {too: 'new'}};

}

@Component({
  selector: 'app',
  template: `
<pipe-builtins></pipe-builtins>
 `
})
class AppComponent {
  imageUrl: string = "";

}


@NgModule({
  imports: [BrowserModule],
  declarations: [AppComponent,
    PipeBuiltinsComponent
  ],
  bootstrap: [AppComponent],
})
class AppModule {

}

platformBrowserDynamic().bootstrapModule(AppModule);
