RxJS & Angular

Learning Objectives

  • Know which parts of Angular expose observables.

  • Know how to practically use RxJS in Angular Forms.

  • Know how to chain common RxJS operators together.

  • Know that you don’t need to use observables in Angular and how to implement the same solution without an observable chain.

Angular observables

There are a few places in Angular 2 where reactive programming and observables are in use.

EventEmitter

Under the hood this works via Observables.

HTTP

We’ve not covered this yet but HTTP requests in Angular are all handled via Observables.

Forms

Reactive forms in Angular expose an observable, a stream of all the input fields in the form combined.

In this lecture we’ll use Forms as an example of how to do Reactive Programming in Angular.

Important

In order to teach you a practical example of RxJS in Angular I have to jump ahead and use something we have not covered yet, Forms and specifically the Reactive Forms module.

This is not the only way to implement forms in Angular. This is the reactive model driven approach, there is also the template driven approach, will go through both in the course.

We’ll cover forms in much more detail later on in this course so for now I’m going to gloss over a lot of the details and focus only on the code that deals with RxJS.

Reactive form example

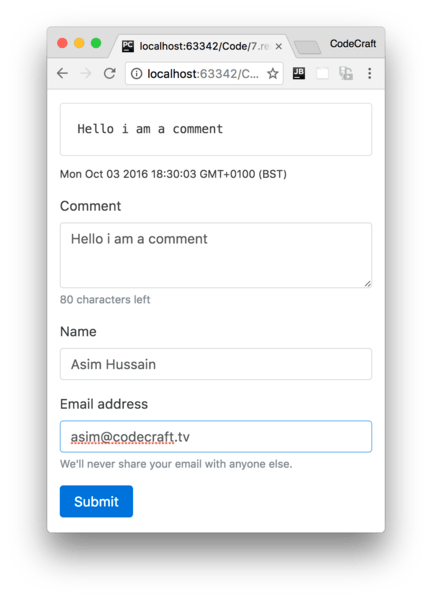

In our example we have a FormAppComponent which renders a form like so:

form example.png

We have a comment input area, a name and email input field and also a submit button.

We won’t go through the listing for the template HTML, since it’s complex and won’t make sense until we cover forms later on, but we will go through the code for the component class, like so:

form-app-component.ts
import 'rxjs/Rx'; (1)
.
.
.
class FormAppComponent {
  form: FormGroup; (2)
  comment = new FormControl("", Validators.required); (3)
  name = new FormControl("", Validators.required); (3)
  email = new FormControl("", [ (3)
    Validators.required,
    Validators.pattern("[^ @]*@[^ @]*")
  ]);

  constructor(fb: FormBuilder) {
    this.form = fb.group({ (4)
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
  }

  onSubmit() {
    console.log("Form submitted!");
  }
}

  1. We import the full RxJS library into our application (this import includes all the operators).

  2. We create a form property which will hold a representation of our form so we can interact with it from code.

  3. We create individual instances of controls and rules for when user input is valid or invalid.

  4. We then link our form with the controls we created in the constructor using something called a FormBuilder

We create a form instance on our component, this instance exposes an observable, a stream of all the input fields combined into a object, via it’s valueChanges property.

We can subscribe to that observable and print our the current value of the form, like so:

  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .subscribe( data => console.log(JSON.stringify(data)));
  }

Then as I type into the form, this below gets printed to the console.

{"comment":"f","name":"","email":""}
{"comment":"fo","name":"","email":""}
{"comment":"foo","name":"","email":""}
{"comment":"foo","name":"a","email":""}
{"comment":"foo","name":"as","email":""}
{"comment":"foo","name":"asi","email":""}
{"comment":"foo","name":"asim","email":""}
{"comment":"foo","name":"asim","email":"a"}
{"comment":"foo","name":"asim","email":"as"}
{"comment":"foo","name":"asim","email":"asi"}
{"comment":"foo","name":"asim","email":"asim"}
{"comment":"foo","name":"asim","email":"asim@"}

Processing only valid form values

Looking at the stream above we can see that most of the stream items are for invalid forms; comment, name and email are required so any form without a value for those is invalid. Also we have some special validation logic for the email field, it’s only valid if it contains an @ character.

In fact the only valid stream item is the last one {"comment":"foo","name":"asim","email":"asim@"}.

That’s a common issue when dealing with forms, we only want to bother processing the results of a valid form, there really isn’t any point processing invalid form entries.

We can solve this by using another RxJS operator called filter. filter accepts a function and passes to it each item in the stream, if the function returns true filter publishes it to the output stream.

  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .filter(data => this.form.valid)
        .subscribe( data => console.log(JSON.stringify(data)));
  }

this.form.valid is true when the whole form is valid. So while the form is invalid .filter(data ⇒ this.form.valid) doesn’t push items to the output stream, when the form is valid it does start pushing items to the output stream.

The end result of the above is that when we type into the form the same data as before, the only item that gets published in our subscribe callback is:

{"comment":"foo","name":"Asim","email":"asim@"}

Cleaning form data

A comment input box is a dangerous place, hackers try to input things like <script> tags and if we are not careful we open ourselves to the possibility of hackers gaming our applications.

So one common safety measure for comment forms is to strip our app html tags from the message before we post it anywhere.

We can solve that again via. a simple map operator on our form processing stream.

  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .filter(data => this.form.valid)
        .map(data => {
          data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, '');
          return data
        })
        .subscribe( data => console.log(JSON.stringify(data)));
  }

We add another operator to our stream, specifically we added a map operator.

We added this after the filter operator, so this map operator only gets called when the previous filter operator publishes to it’s output stream. To put it another way, this only gets called on valid form values.

.map(data => { (1)
  data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, ''); (2)
  return data (3)
})

  1. The map operator gets passed the form object as a parameter called data.

  2. We apply a regular expression on the comment property to replace everything that could be a HTML tag with an empty string.

  3. What we return from the map function is what gets pushed to the map operators output stream.

Now when we type into our form a comment of <script> this is what gets printed out:

{"comment":"<","name":"Asim","email":"asim@"}
{"comment":"<s","name":"Asim","email":"asim@"}
{"comment":"<sc","name":"Asim","email":"asim@"}
{"comment":"<scr","name":"Asim","email":"asim@"}
{"comment":"<scri","name":"Asim","email":"asim@"}
{"comment":"<scrip","name":"Asim","email":"asim@"}
{"comment":"<script","name":"Asim","email":"asim@"}
{"comment":"","name":"Asim","email":"asim@"}

Focusing on the last line {"comment":"","name":"Asim","email":"asim@"} we can see that the <script> tag the user typed in, is stripped from the comment property.

Adding form values

A useful feature would be if we could let the user know that last time the form was updated.

We can solve this again by adding another operator to our observable chain, this time we just add the current time to another property to our data object called lastUpdateTS, like so:

  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .filter(data => this.form.valid)
        .map(data => {
          data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, '');
          return data
        })
        .map(data => {
          data.lastUpdateTS = new Date();
          return data
        })
        .subscribe( data => console.log(JSON.stringify(data)));
  }

This second map operator simply adds a property to our data object and then pushes the data object onto its output stream.

If we now ran our application we would see this printed out:

{"comment":"f","name":"Asim","email":"asim@","lastUpdateTS":"2016-10-03T20:33:45.980Z"}
{"comment":"fo","name":"Asim","email":"asim@","lastUpdateTS":"2016-10-03T20:33:46.187Z"}
{"comment":"foo","name":"Asim","email":"asim@","lastUpdateTS":"2016-10-03T20:33:46.364Z"}

Not using observables

In Angular we don’t need to use observables, and therefore reactive programming, if we don’t want to.

Instead of adding operators to the observable chain we can instead choose to just subscribe and do the processing in the callback, like so:

  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .subscribe( data => {
          if (this.form.valid) {
            data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, '');
            data.lastUpdateTS = new Date();
            console.log(JSON.stringify(data))
          }
        });
  }

Important

In the above example there doesn’t seem to be much advantage to reactive programming via an observable chain vs. just coding up as you are used to in the subscribe callback.

The advantage of RxJS and Observables come to play when we start using more of the complex operators like debounce and distinctUntilChanged. Implementing the same functionality as those operators via standard imperative coding techniques would take many more lines of code than the equivalent RxJS solution.

Summary

Angular exposes RxJS observables in a small but important number of places in Angular. The EventEmitter, HTTP and Reactive Forms.

We use operators to add to the observable chain and then subscribe to the output and perform actual real life actions in our application, either change the state of variables or call functions.

We can choose to take advantage of that and code reactively, or we can just subscribe to the observable and code imperatively.

If we create forms using the ReactiveForms module we

Listing

http://plnkr.co/edit/0sWWUiebI6I65LAcWrTN?p=preview

script.ts
import {NgModule, Component} from '@angular/core';
import {BrowserModule} from '@angular/platform-browser';
import {platformBrowserDynamic} from '@angular/platform-browser-dynamic';
import {ReactiveFormsModule, FormGroup, FormControl, Validators, FormBuilder} from "@angular/forms";
import 'rxjs/Rx';

@Component({
  selector: 'form-app',
  template: `<form [formGroup]="form"
      (ngSubmit)="onSubmit()">

  <!-- Output comment -->
  <div class="card card-block">
    <pre class="card-text">{{ form.value.comment }}</pre>
  </div>
  <p class="small">{{ form.value.lastUpdateTS }}</p>

  <!-- Comment text area -->
  <div class="form-group">
    <label for="comment">Comment</label>
    <textarea class="form-control"
              formControlName="comment"
              rows="3"></textarea>
    <small class="form-text text-muted">
           <span>{{ 100 - form.value.comment.length }}</span> characters left
    </small>
  </div>

  <!-- Name input -->
  <div class="form-group">
    <label for="name">Name</label>
    <input type="text"
           class="form-control"
           formControlName="name"
           placeholder="Enter name">
  </div>

  <!-- Email input -->
  <div class="form-group">
    <label for="email">Email address</label>
    <input type="email"
           class="form-control"
           formControlName="email"
           placeholder="Enter email">
    <small class="form-text text-muted">
           We'll never share your email with anyone else.
    </small>
  </div>

  <button type="submit"
          class="btn btn-primary"
          [disabled]="!form.valid">Submit
  </button>
</form>
 `
})
class FormAppComponent {
  form: FormGroup;
  comment = new FormControl("", Validators.required);
  name = new FormControl("", Validators.required);
  email = new FormControl("", [
    Validators.required,
    Validators.pattern("[^ @]*@[^ @]*")
  ]);

  /* Observable Solution */
  constructor(fb: FormBuilder) {
    this.form = fb.group({
      "comment": this.comment,
      "name": this.name,
      "email": this.email
    });
    this.form.valueChanges
        .filter(data => this.form.valid)
        .map(data => {
          data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, '');
          return data
        })
        .map(data => {
          data.lastUpdateTS = new Date();
          return data
        })
        .subscribe( data => console.log(JSON.stringify(data)));
  }

  /* None Observable Solution */
  // constructor(fb: FormBuilder) {
  //   this.form = fb.group({
  //     "comment": this.comment,
  //     "name": this.name,
  //     "email": this.email
  //   });
  //   this.form.valueChanges
  //       .subscribe( data => {
  //         if (this.form.valid) {
  //           data.comment = data.comment.replace(/<(?:.|\n)*?>/gm, '');
  //           data.lastUpdateTS = new Date();
  //           console.log(JSON.stringify(data))
  //         }
  //       });
  // }

  onSubmit() {
    console.log("Form submitted!");
  }
}

@Component({
  selector: 'app',
  template: `
<form-app></form-app>
  `
})
class AppComponent {
}


@NgModule({
  imports: [BrowserModule, ReactiveFormsModule],
  declarations: [AppComponent, FormAppComponent],
  bootstrap: [AppComponent],
})
class AppModule {

}

platformBrowserDynamic().bootstrapModule(AppModule);
